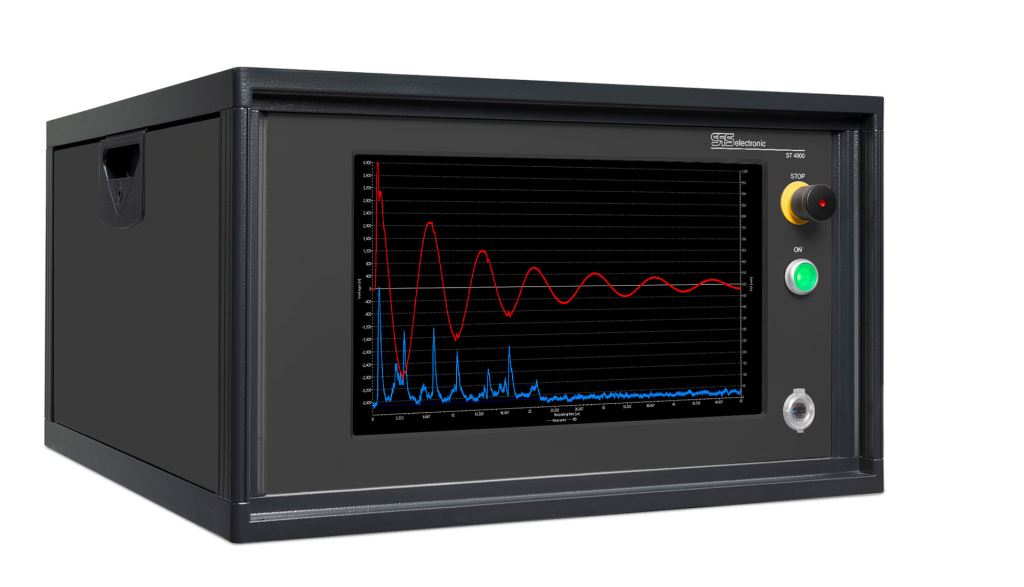

• Desktop device 19" / 6 HU
• Surge voltage test: 100 - 6.000 V
• Surge capacity: 18 nF, optional: 40 nF, 100 nF, 200 nF
• Partial discharge measurement according to IEC 61934
• Evaluation method: Error area, differential error area, tolerance band method
• High voltage test DC: 100 - 6,000 V / 10 mA
• Insulation measurement DC: 100 - 6,000 V / 10 GΩ / kV
• Resistance measurement (optional): 20 mΩ to 200 kΩ, max. 1A
• Internal matrix: 4 phases + PE, 4-wire
