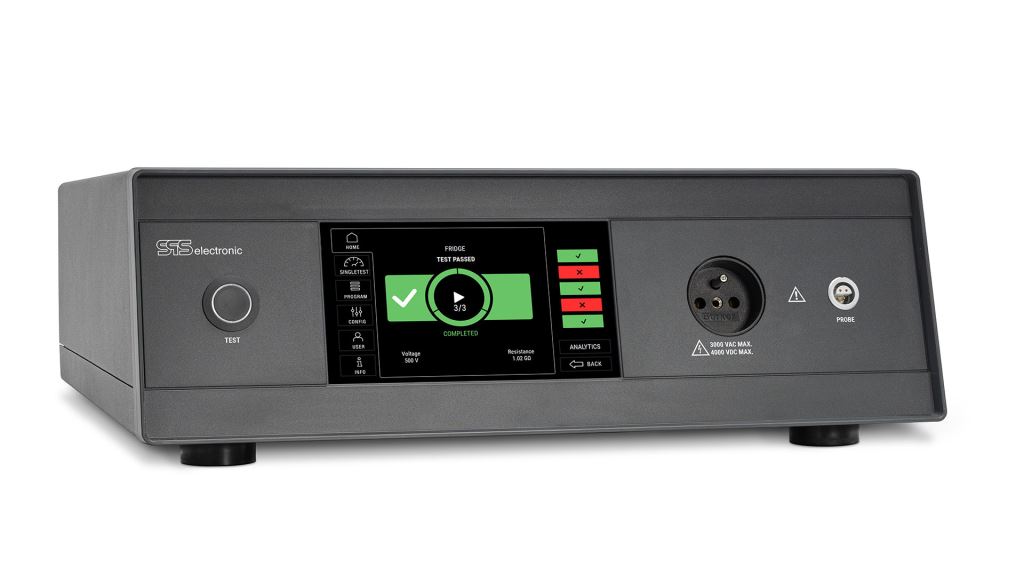

• Modern desktop device
• High-voltage test AC: 100 - 5,500 V / 0 - 20 mA
• DC high voltage test: 100 - 6,000 V / 0 - 20 mA
• Insulation measurement DC: 100 - 6,000 V / 100 kΩ - 50 GΩ
• Ground bond test AC: 1 - 32 A / 0 - 6 Ω
• Substitute leakage current test AC: 50 - 270 V / 0 - 10 mA
• Resistance measurement: 1 Ω - 1 MΩ
• Continuity test: < 14 Ω ≙ short circuit i > 100 kΩ ≙ no continuity
• Function test AC / DC: 0 - 250 V / 0 - 16 A
• Active power measurement: 0 - 4000 W
• Reactive power measurement: 0 - 4000 var
• Apparent power measurement: 0 - 4000 VA
• cos φ: -1 to +1
