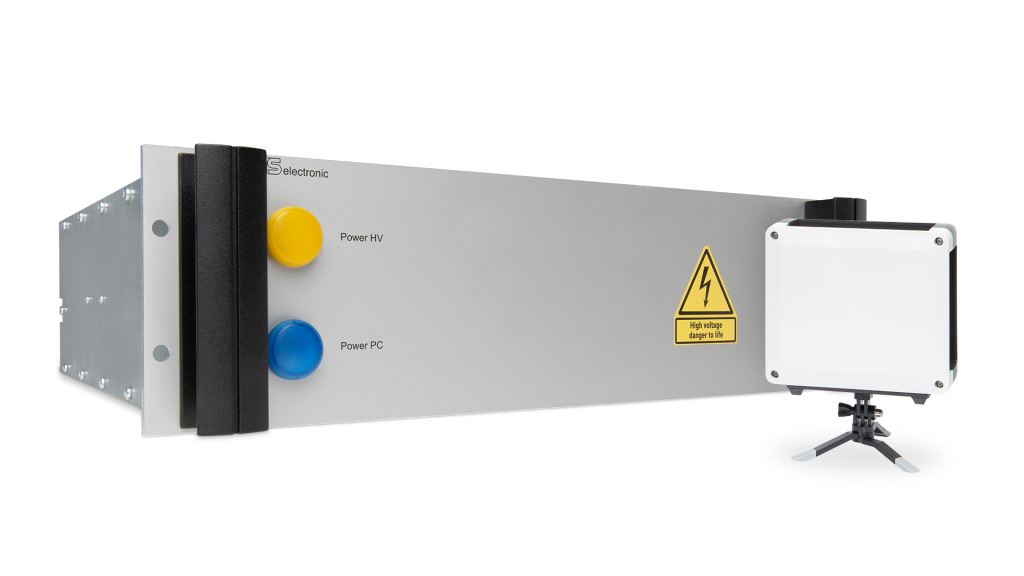

 Products | SPS Electronic - Partial Discharge Testers - Surge tester ST 3820K |
| |
 |
-
Plug-in 19" / 3 HU
-
Surge voltage test: 100 - 6.000 V
-
Surge capacity: 18 nF, optional: 40 nF, 100 nF , 200 nF
-
Evaluation method: Error area, differential error area, tolerance band method
-
Insulation measurement DC: 100 - 6,000 V / 100 GΩ/kV
-
High voltage test DC: 100 - 6,000 V / 10 mA
-
Partial discharge measurement: 100 - 6,000 V, according to IEC 61934 Evaluation of inception and extinction voltages (PDIV, RPDIV, PDEV & RPDEV)
-
Internal matrix: L, N, + PE Guard
|
|
|
|
