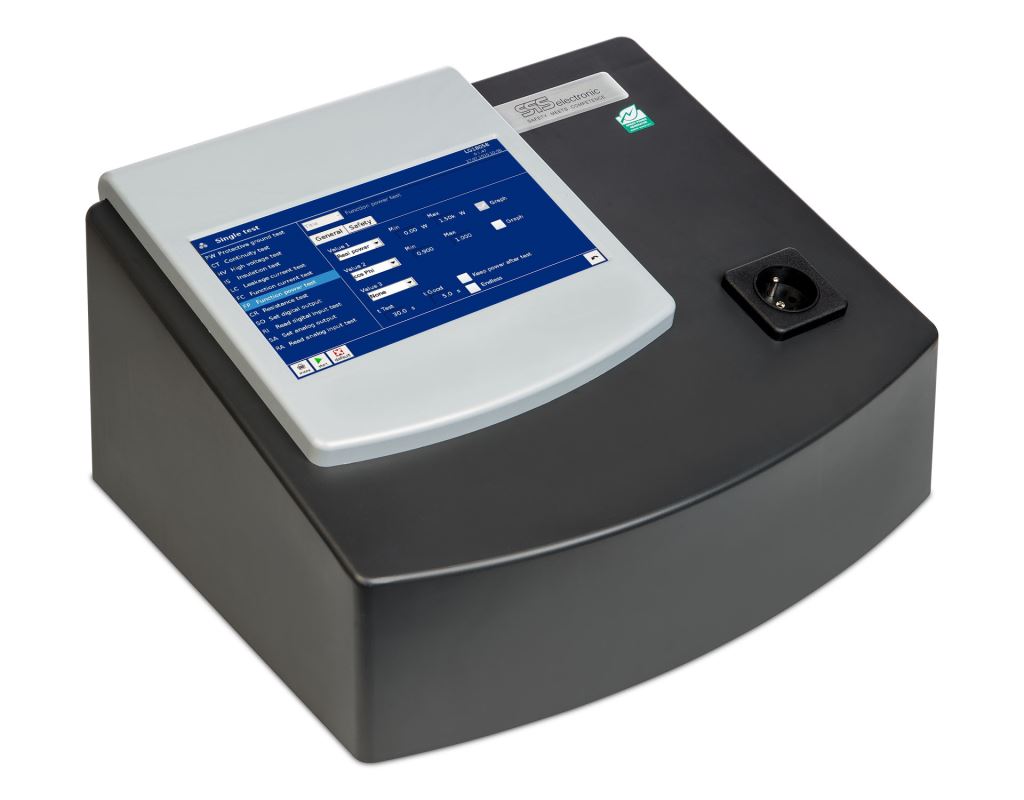

• Ergonomic desktop device
• High voltage test AC: 100 - 5,500 V / 0 - 3 mA
• High voltage test DC: 100 - 6,000 V / 0 - 10 mA
• Insulation measurement DC: 100 - 6,000 V / 250 kΩ - 1 GΩ
• Ground bond test AC: 1 - 30 A / 0 - 10 Ω
• ARC detection (optional): 0 - 100 %
• Equivalent leakage current test AC: 50 - 270 V / 0 - 10 mA
• Continuity test DC: 24 V / 0 - 600 mA
• Short-circuit test DC: 24 V / > 600 mA
• Resistance measurement (optional): 1 - 1.000 Ω
• Function test AC / DC: 0 - 300 V / 0 - 16 A
• Active power measurement (optional): 0 - 4.000 W
