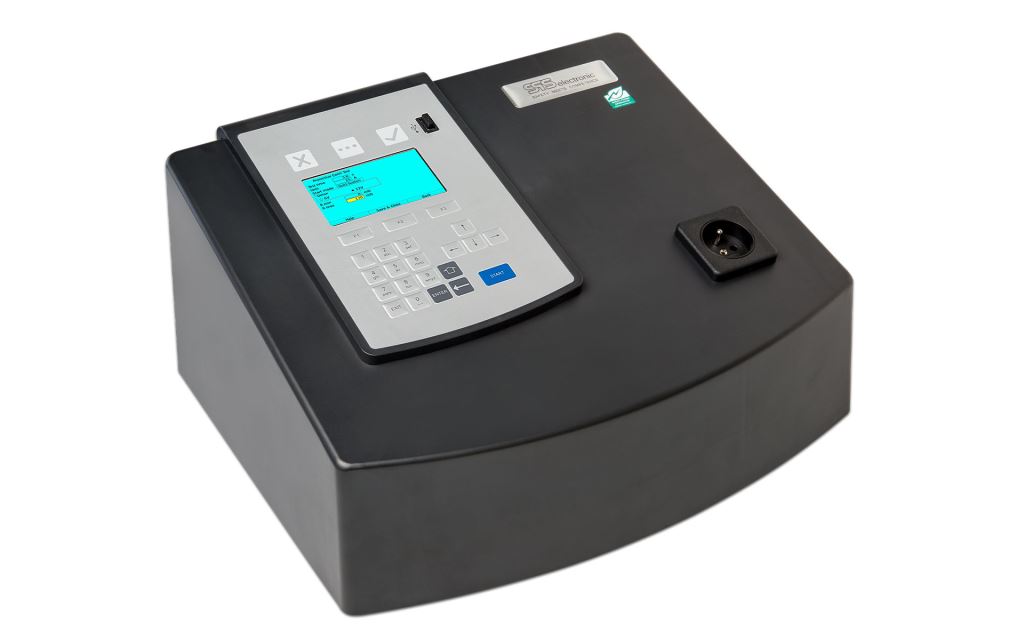

• Ergonomic desktop device
• High voltage test AC: 100 - 5,500 V / 0 - 3 mA
• High voltage test DC: 100 - 6,000 V / 0 - 10 mA
• Insulation measurement DC: 100 - 6,000 V / 250 kΩ - 1 GΩ
• Ground bond test AC: 10 - 30 A / 0 - 400 mΩ
• Equivalent leakage current test AC: 100 - 270 V / 0 - 10 mA
• Continuity test DC: 24 V / 0 - 600 mA
• Function test / current consumption AC: 4 A (option: 1 A, 10 A or 16 A)
